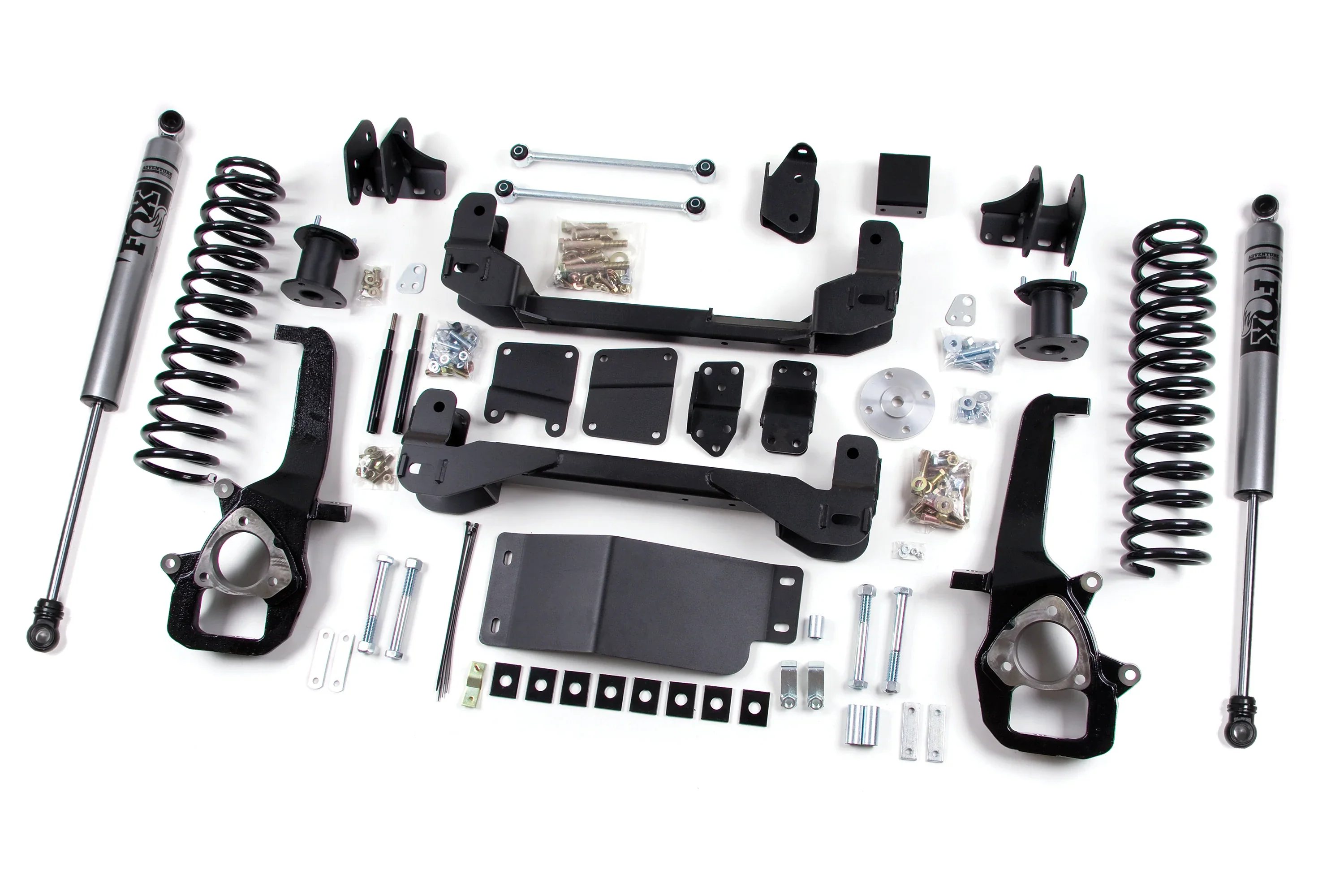

Zone Offroad 2013-2018 Dodge 1500 4in/3in Suspension Lift System - Fox 2.0 Adventure Series Shocks
The Zone Offroad 4-inch Lift Kit for 2013-2018 Ram 1500 4x4 trucks delivers aggressive stance, larger tire clearance, and OE-quality engineering for both on- and off-road performance. Designed by our team of engineers in Coldwater, Michigan to OE standards, this system features heavy-duty steering knuckles that are cast in the USA, while all fabricated steel components are locally manufactured and powder coated for long-lasting durability and corrosion resistance. The 4-inch lift allows clearance for up to 35 x 12.50 tires on wheels with 4.5 inches of backspacing, giving your Ram a commanding presence and enhanced capability. This kit also offers multiple configuration options to fit your build. Up front, you can choose OE strut spacers that retain the factory front struts and pair them with either Zone Nitro twin-tube rear shocks or upgrade to FOX 2.0 Adventure Series rear shocks for improved performance. For a complete bolt-in solution, Zone Nitro loaded struts are also available and come preassembled for easy installation, matched with Zone Nitro rear shocks. In the rear, you can select a 2-inch block to level the truck from front to rear or a 3-inch block to retain some of the factory rake, allowing you to tailor the stance and functionality of your lifted Ram.
Features & Benefits
- Corrects suspension, steering, and drive-line geometry for great on-road handling and improved off-road performance.
- Heavy-duty differential skid slate improves offroad protection.
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
- Multiple rear lift heights available to achieve desired stance (see important notes). Top-mount strut spacers set ride height, maintain ride quality, and are easy to install.
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
Rear Lift Option
These vehicles vary from 1" to 3" tail high from the factory. BDS offers 3" rear coil springs (standard) or 2" rear coil spring spacers. Measure your vehicle and order the appropriate rear lift height to get your desired stance.
Coil Spacers
- Maintains factory ride quality
- Made with heavy-duty steel construction
- Powdercoat finish for long-lasting durability
Coil Springs
- Full replacement rear coil springs
- Coils are progressive rate and provide a great ride loaded or not
- Built to handle heavy loads without sagging
- A polyester-based powder coat is applied to ensure flexibility and durability
- Shot peened to increase tensile strength and maximum wheel travel without sacrificing spring life
Rear Shock Option
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting silver coated finish
