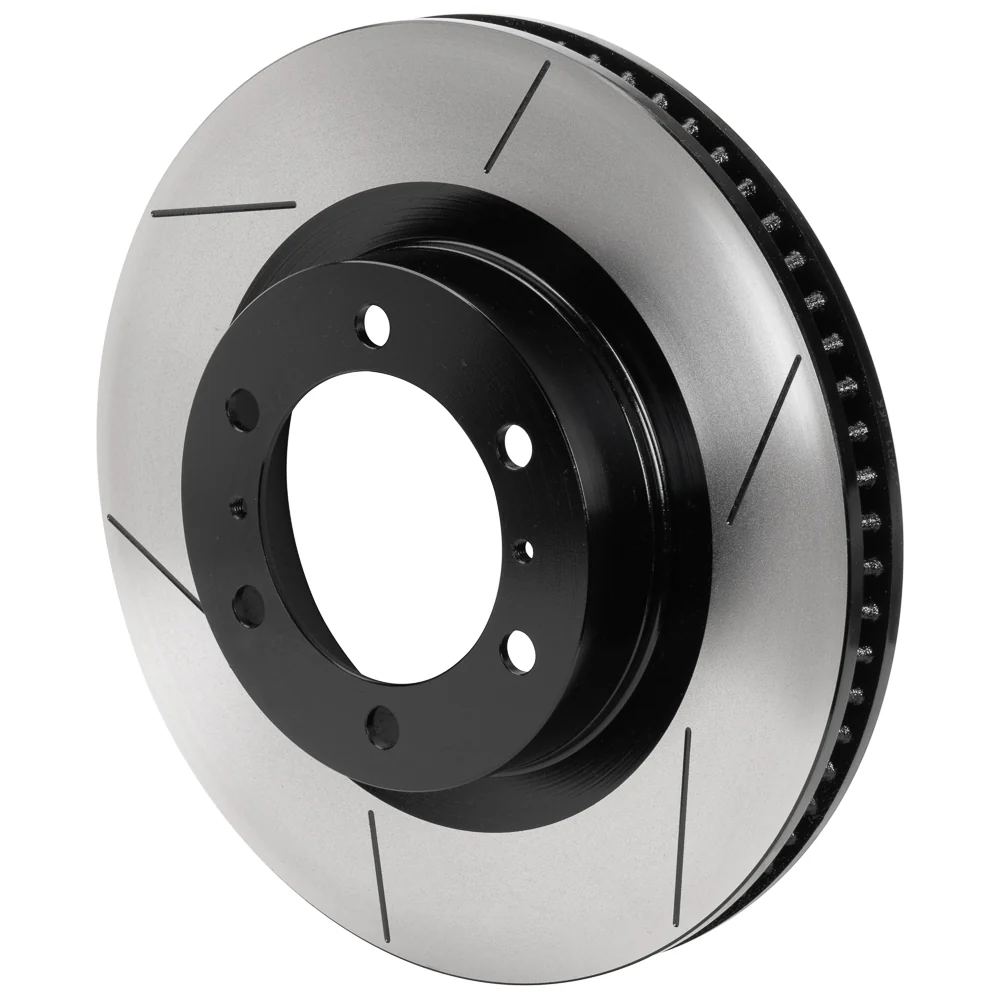

Wilwood 6x5.500 Slotted GT Vented Rotor & Hat
GT Vented Rotor and Hats are built for the extreme conditions of motorsports or heavy duty use. The superior heat absorption and dissipation characteristics of these heavy wall multi-vane rotors are the keys to preventing heat fade and realizing long service life from the rotors and pads. All rotors are cast from premium grade, long grain carbon iron for long wear, thermal stability, and resistance to distortion.

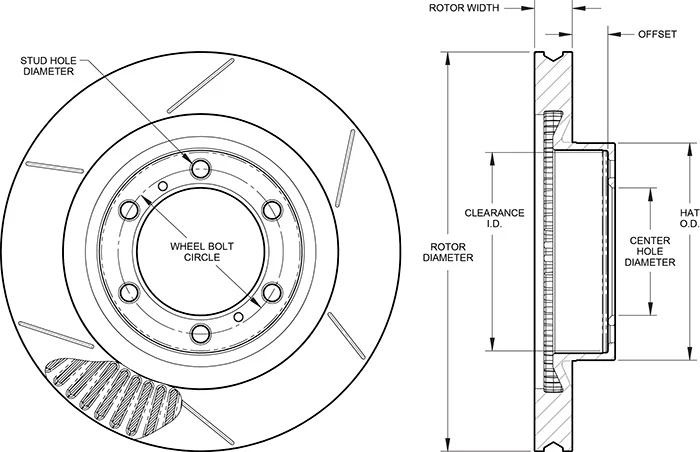

| Rotor Dimensions | |
|---|---|
| Width (in) | 1.26 |
| Diameter (in) | 13.31 |
| Mount Side | Non_Direct |
| Rotor Design | |
| Material | Iron |
| Vane Count | 68 V |
| Weight(Lbs) | 23.79 |
| Rotor Style & Finish | |
| Type | GT-BLK |
| Style | GT Slotted |
| Surface Finish | Black Electro Coat |
| Rotor Upgrades | |
| Burnished | No |
| Balanced | Yes |
| UPC Number | |
| UPC | 889545109290 |
| Rotor Bolt Circle (in) | |
| Rotor Mount Hole Size (in) | |
| Lug ID / Registration (in) | 4.25 |
| Far Side Inside Diameter (in) | 9.13 |
| Offset Dimension (in) | 1.180 |
| Shoe Inside Dimension (in) | |
| Clearance Inside Diameter (in) | 6.77 |
| Wheel Bolt Circle (in | 6 x 5.50 |
| Stud Diameter (in) | 0.58 |
| Face Thickness (in) | 0.24 |
