CST 4.5" Stage 2 Suspension System — 19-25 Chevy / GMC 1500 2WD/4WD

A true 4.5" of front lift on high-clearance subframes — for 2019–2025 Chevy Silverado / GMC Sierra 1500 (2WD & 4WD, gas or diesel). A smooth, compliant ride with the front lifted more than the rear to level the truck. Must run 20" or larger wheels.

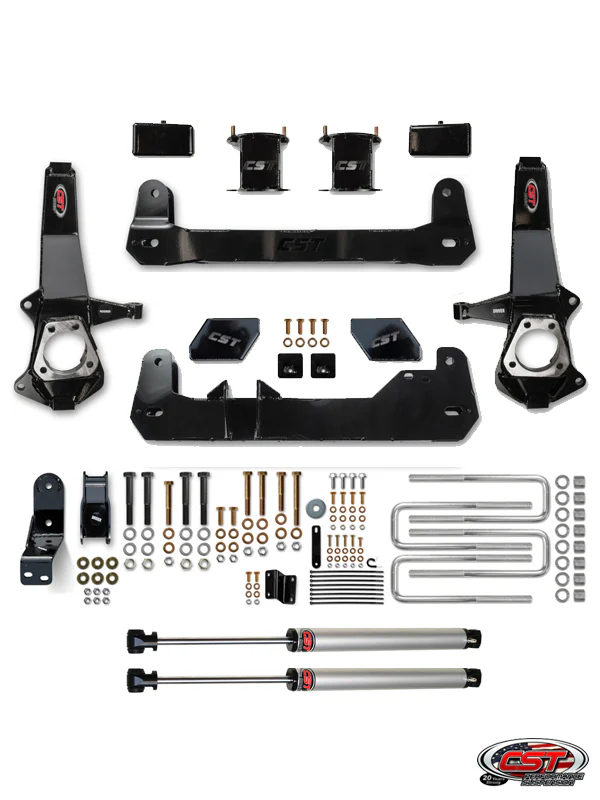

What this stage includes

• High-clearance front subframes with diff-drop brackets
• Laser-cut, machined steering knuckles and rear brackets
• Sway-bar and ABS drop brackets, plus front coilover spacers
• 3" rear lift block with extended U-bolts, and all hardware
• Reuses your factory front coilovers
• Plus CST DIRT-Series 2.0 rear shocks

Why CST

• True 4.5" of front lift on USA-made high-clearance subframes
• Laser-cut, machined knuckles for strength and durability
• Front lifted more than the rear for a level stance
• Major components powder-coated in gloss black

Good to know

• Requires 20" or larger wheels
• Clears 33–34" tires with no trimming, or 35s with minor trimming (20x9, 5" backspacing)
• Max wheel backspacing: 5"
• Professional installation and alignment recommended
