Carli XXHD Leaf Spring Kit - 2017–2023 Ford F250/F350 - +3500 lbs - 1" Lift

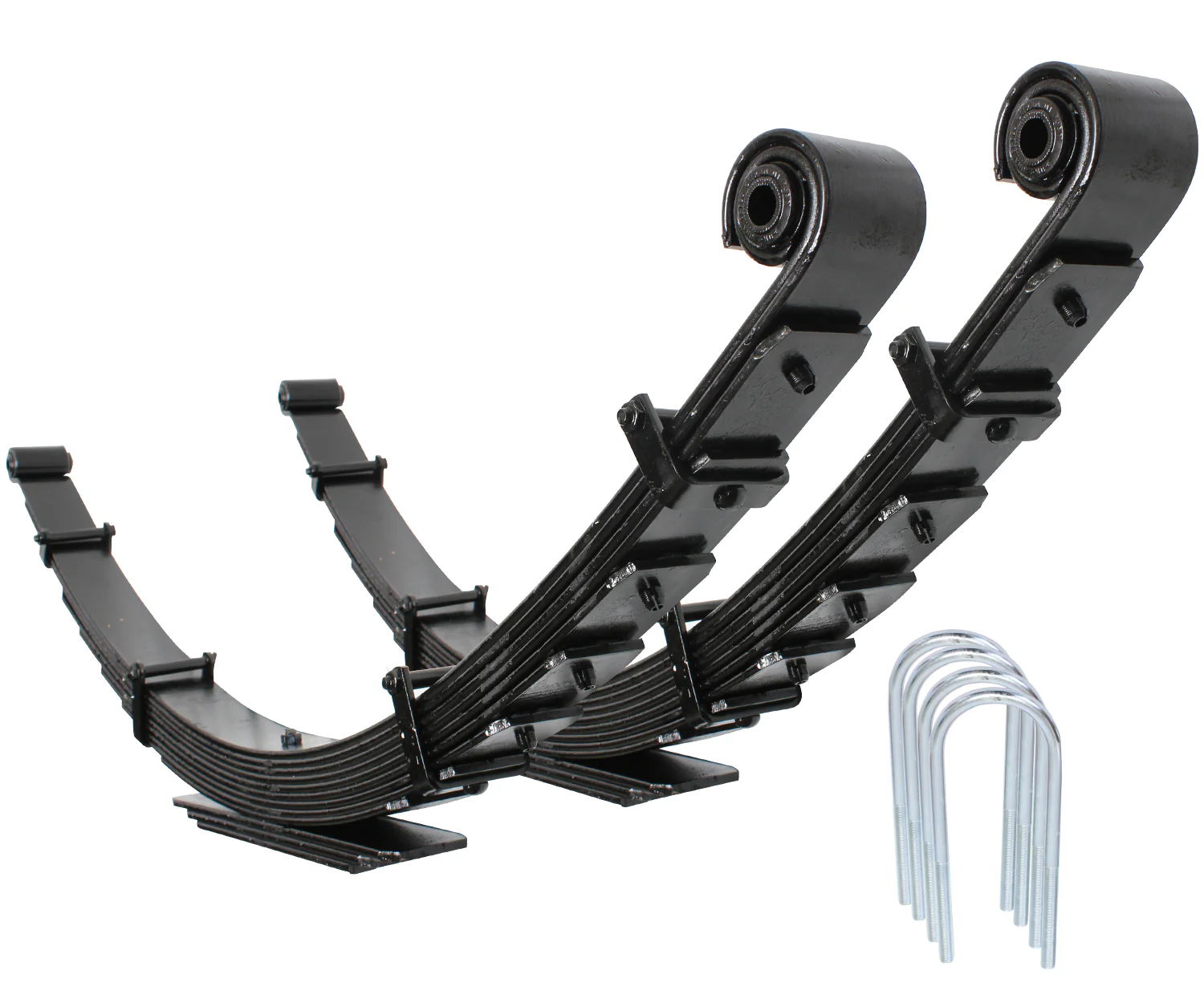

The Carli XXHD Full Replacement Leaf Spring Kit is engineered specifically for extreme constant-load applications, supporting trucks with a sustained 3,500 lb bed load. Designed primarily for cab-over campers and heavy-duty overland or rescue builds, this system delivers exceptional stability, control, and fully progressive suspension performance under heavy weight. These springs are not intended for unloaded use and require the full constant load to achieve proper ride height and functionality.

Originally developed for a professional off-road race rescue vehicle, this XXHD spring pack transforms your truck’s rear suspension into a high-capacity, travel-friendly system capable of handling serious weight with confidence. Due to the increased spring rate and elevated center of gravity, Carli strongly recommends pairing this kit with 2.5" remote reservoir shocks and custom tuning for optimal ride quality and control.

Key Features:

• Designed for constant 3,500 lb bed load applications

• Ideal for cab-over campers, flatbeds, and overland builds

• Full progressive, block-eliminating leaf spring pack

• Provides approximately 1" of lift at rated load

• Enhances rear suspension travel and load stability

• Includes new U-bolts and rear bump stop drop spacers

• Supports up to 37" tire fitment

• Engineered for high center of gravity applications

Fitment:

• 2017–2023 Ford F-250 4x4 (Diesel)

• 2017–2023 Ford F-350 4x4 (Diesel)

Notes:

• Not designed for unloaded driving conditions

• Requires approximately 3,500 lbs constant load for proper ride height and performance

• Recommended rear axle weight: ~6,500 lbs (verified on certified scale)

• Compatible with 3.5"–4.0" axle tube diameters

• Recommended upgrade: Carli 2.5" remote reservoir shocks with custom tuning

• Originally developed for heavy-duty off-road rescue and expedition builds

SKU: CS-FFSP-LVL-17-XXHD
