Carli Unchained 3.5 System - Base - 3in Lift - 10-11 Ram 2500/3500 - Diesel - Long Arm

Carli Suspension

Unchained 3.5 System - Base - 3in Lift - 10-11 Ram 2500/3500 - Diesel - Long Arm

The Carli Unchained 3.5 System is a no-compromise long arm suspension engineered for extreme off-road performance while still delivering a controlled and responsive on-road feel. Designed for serious enthusiasts, this system dramatically increases suspension travel, control, and durability, allowing your Ram to perform at a level far beyond factory limitations.

At the heart of the system are Carli Signature tuned King 3.5" remote reservoir front shocks paired with 3.0" 4-tube bypass rear shocks. Combined with the fully fabricated long arm system, this setup delivers superior damping, increased bottom-out resistance, and the ability to maintain traction across harsh terrain. The result is a highly capable suspension that remains composed on the street while excelling in aggressive off-road conditions.

Key Features:

• Complete 3" long arm suspension system for maximum off-road capability

• Carli-tuned King 3.5" remote reservoir front shocks with long-travel tuning

• King 3.0" 4-tube bypass rear shocks with user-adjustable performance zones

• Fully fabricated long arm system with over 50% longer arms for improved geometry

• Provides approximately 3"–3.25" of front lift with significantly increased suspension travel

• Adjustable track bar included to properly recenter the front axle

• Progressive rear suspension improves ride quality and control throughout travel

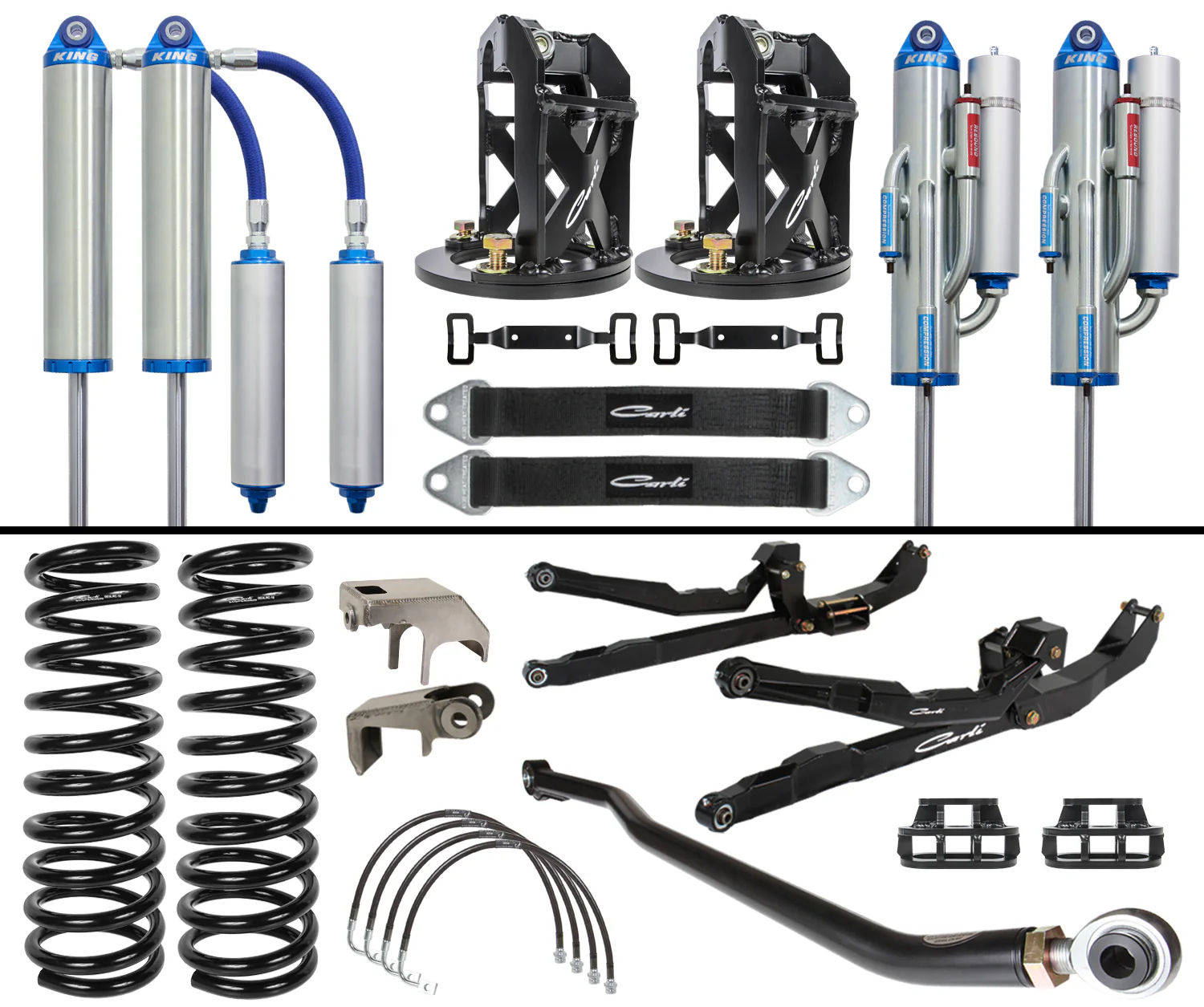

Includes:

• Linear-rate front coil springs

• Front and rear shock package

• Fabricated shock towers

• Fabricated long arm system

• Rear shock mounts

• Brake line kit

• Front bump stop drops

• Adjustable track bar

Notes:

• Requires cutting of factory control arm mounts for long arm installation

• System tuning is aggressive and will ride firmer than entry-level systems, while still improving over stock

• Off-road capability exceeds factory chassis limits; additional reinforcement such as a cage is recommended

• Full progressive rear leaf springs reduce payload capacity approximately 15%, recoverable with long travel airbags

• Fits up to 37" tires with proper wheel specifications and trimming required

• Professional installation is required

Vehicle Fitment:

• 2010–2011 Ram 2500

• 2010–2011 Ram 3500

SKU: CS-DUC35-10-D
