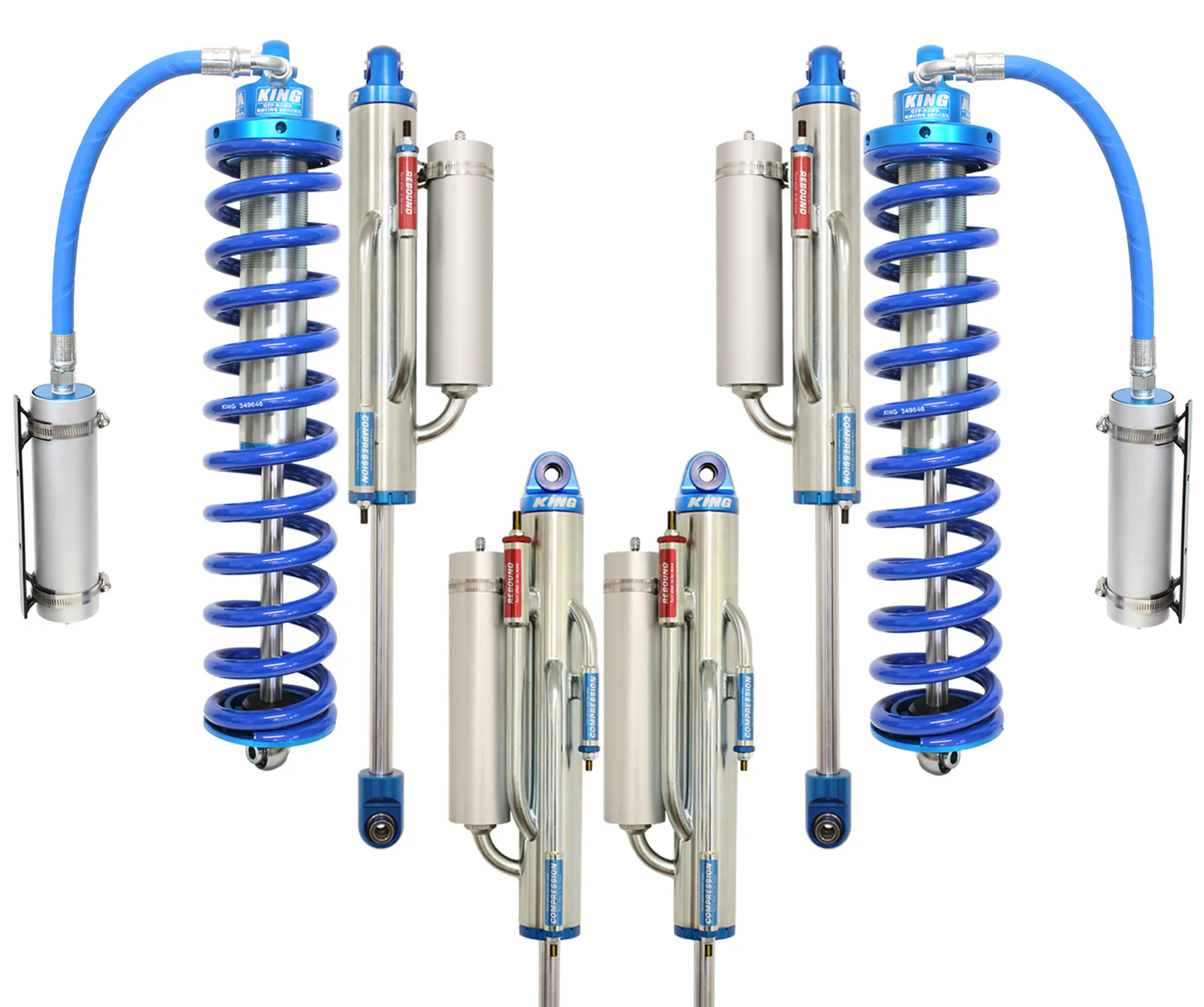

Carli Tuned 2.5 Coilover/Bypass Shock System - 2005–2016 Ford F250/F350 4x4 - For 2.5" Lift

The Carli 2.5 Coilover/Bypass Shock System is one of the most capable off-road suspension packages available, designed for drivers who demand maximum performance and adjustability. Featuring King 2.5" coilovers paired with multi-tube bypass shocks, this system allows for precise tuning to match your driving style and terrain.

Built with Carli’s proprietary tuning and high-end shock components, this package delivers exceptional control, increased travel, and superior off-road capability while maintaining a composed and controlled ride on the street.

Key Features:

• Carli custom pistons and proprietary shock tuning

• 8" stroke King 2.5" coilover remote reservoir shocks (front)

• 8" stroke King 2.5" 2-tube bypass shocks (front)

• 13" stroke King 2.5" 3-tube bypass shocks with high-flow rebound (rear)

• 17-4 stainless steel shock shafts for durability

• Includes reservoir mounts

• Maximum adjustability for custom ride tuning

• Exceptional off-road performance and control

Notes:

• Designed for diesel applications only

• Requires coilover conversion plates (not included)

• Compatible with 2.5" Carli suspension systems

• Intended for high-performance and off-road focused builds

Vehicle Fitment:

• 2005–2016 Ford F-250 Super Duty

• 2005–2016 Ford F-350 Super Duty

SKU: CS-FCO25SPKG-BYP-LVL-05
