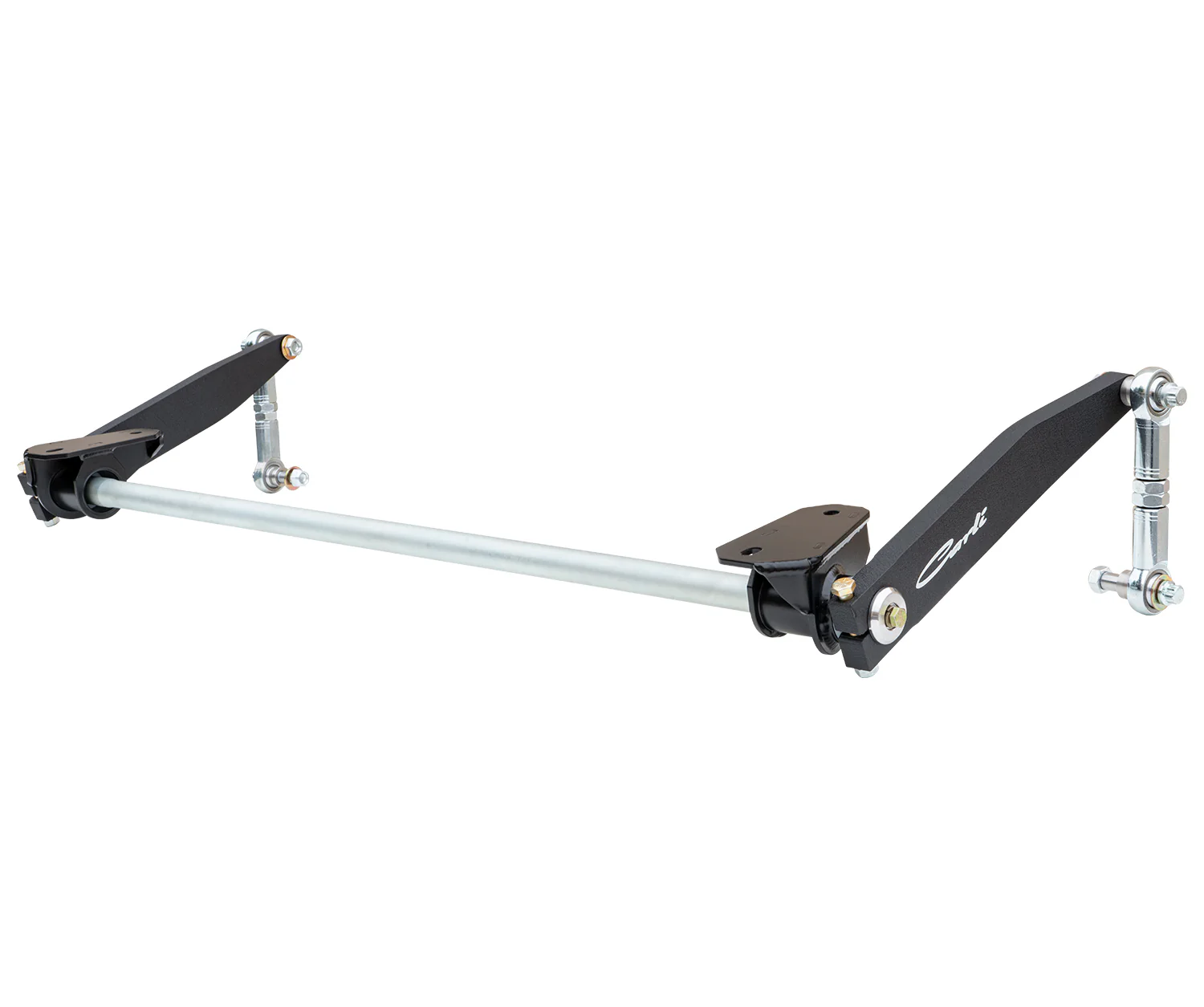

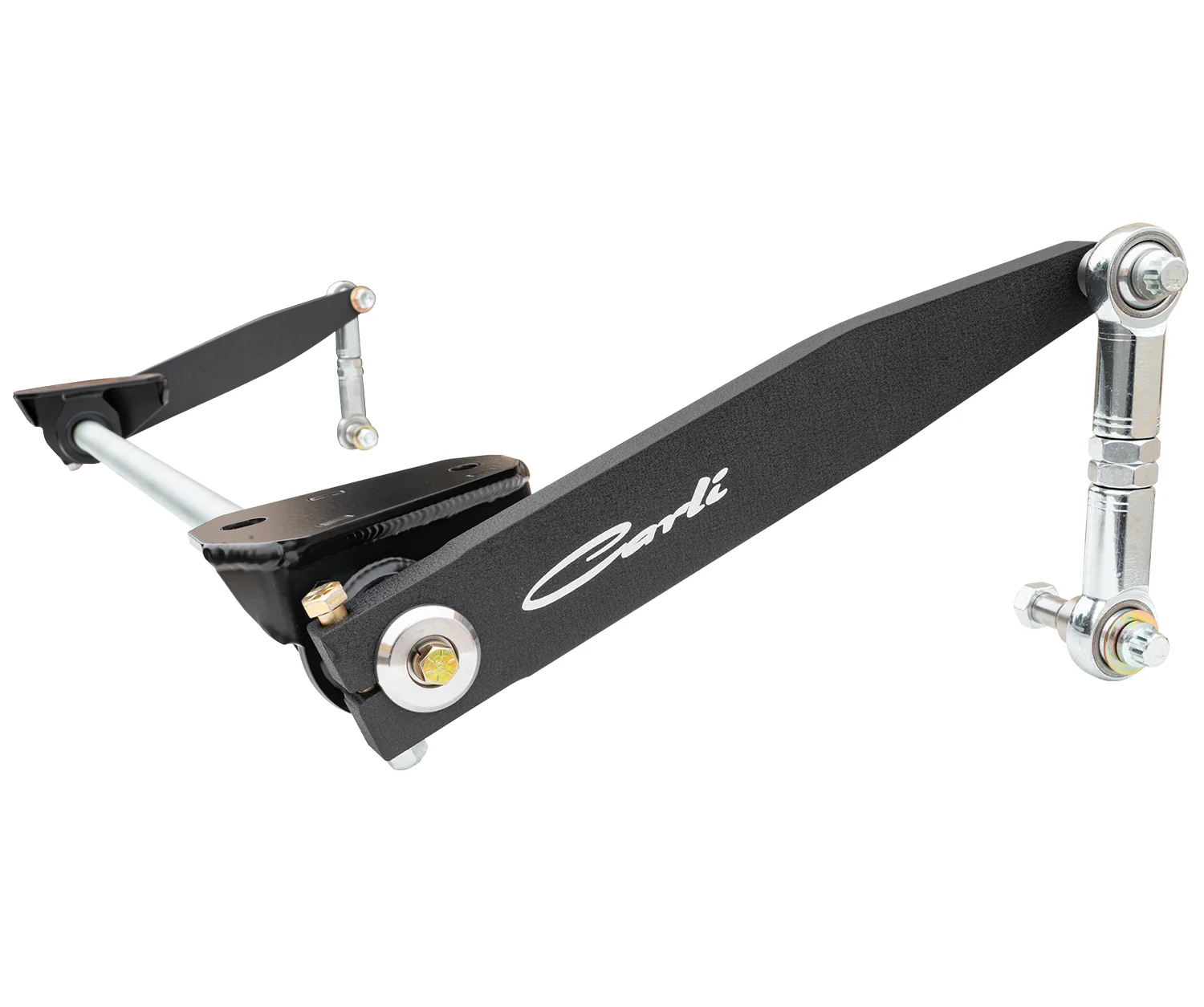

Carli Torsion Sway Bar - 3in Lift - 2014-23 Ram 2500/3500 - 4X4

Carli Suspension

Torsion Sway Bar - 3in Lift - 2014-23 Ram 2500/3500 - 4X4

The Carli Torsion Sway Bar is one of the most effective upgrades available for improving ride quality on the Ram HD platform. Designed to replace the overly rigid factory sway bar, this system allows the front suspension to move more naturally while still maintaining the control needed for safe handling both on and off-road.

By reducing the harsh coupling between the axle and chassis, the Carli sway bar eliminates much of the high-frequency vibration and harshness felt over small bumps and uneven terrain. The result is a smoother, more controlled ride with improved articulation and comfort, while still providing the stability needed for cornering and load handling.

Key Features:

• Designed for 0"–4" lift applications on Ram 2500/3500 4x4

• Significantly improves ride quality and small-bump compliance

• Allows independent suspension movement while maintaining control

• Custom-rate torsion bar tuned for optimal balance of comfort and stability

• Heavy-duty sway bar arms constructed from doubled 3/8" cold-rolled steel

• 17-4 stainless preload washers and Grade 8 hardware for durability

• Includes 5/8" FK chromoly heim joint end links for maximum strength and articulation

Notes:

• Requires removal of factory electronic sway bar on Power Wagon models

• Torsion bar finish may be black or silver zinc depending on availability (not selectable)

• Designed for 2014+ Ram 2500 and 2013+ Ram 3500 4x4 models

• Engineered to work without disconnects or adjustment points for optimal performance

• Professional installation is recommended

Vehicle Fitment:

• 2014–2023 Ram 2500

• 2013–2023 Ram 3500

SKU: CS-DTSB3-1419
