Carli Pintop 2.5 Shock Set - 3.25in Lift - 2016-23 Ram 3500 - W/Auto-Leveling Air

Carli Suspension

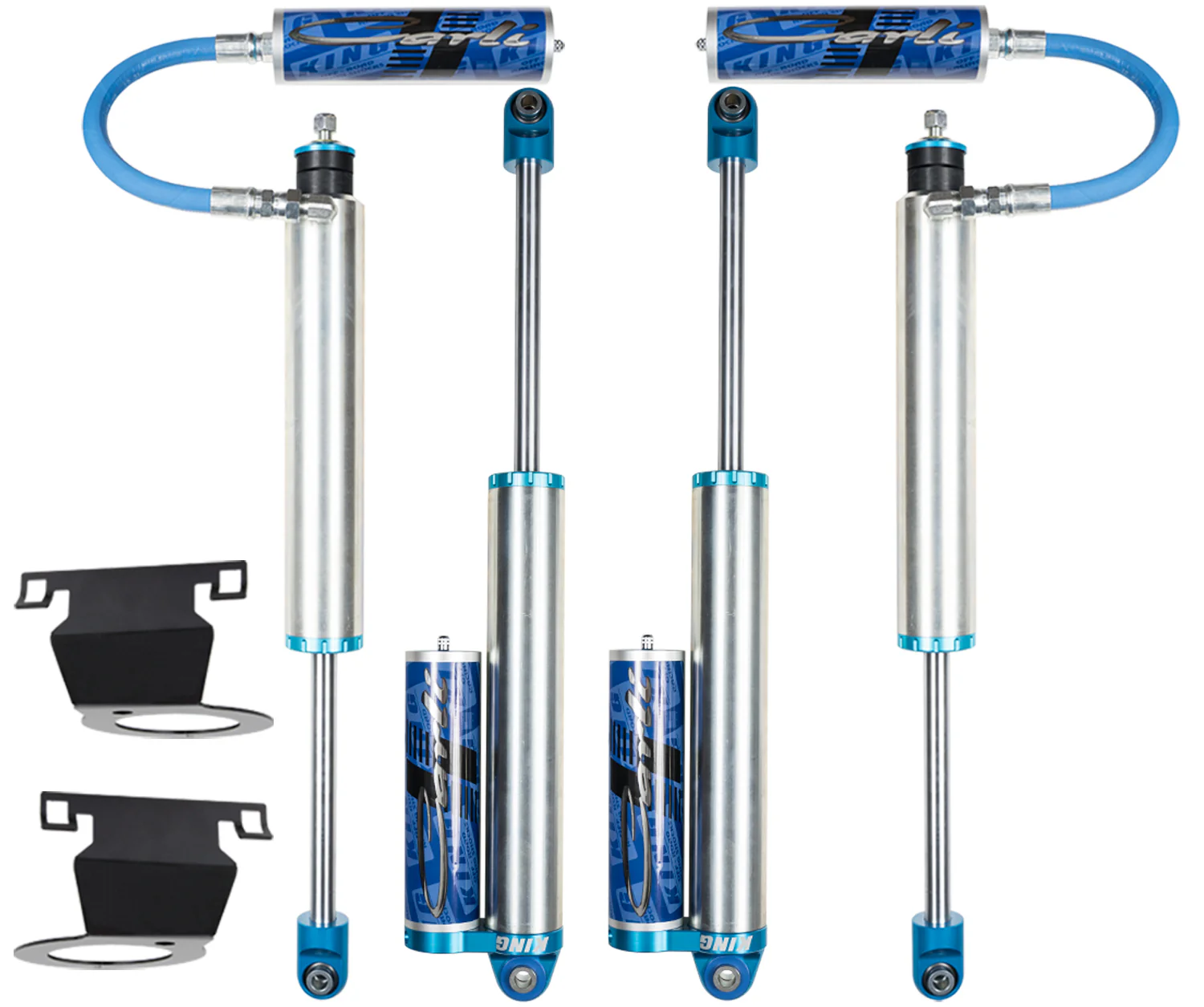

Pintop 2.5 Shock Set - 3.25in Lift - 2016-23 Ram 3500 - Auto-Leveling Air

The Carli Pintop 2.5 Shock Set is a premium suspension upgrade engineered specifically for Ram 3500 trucks equipped with factory auto-leveling air suspension. Built around Carli-specific, blueprinted King 2.5" remote reservoir shocks, this system delivers exceptional ride quality, control, and off-road performance while maintaining compatibility with the factory air system.

With 55% more piston surface area than standard 2.0" shocks, the Pintop system provides superior damping, improved heat dissipation, and increased suspension control. Carli’s custom piston design and in-house tuning ensure these shocks are perfectly matched to the heavy-duty platform, delivering a smooth, planted ride on-road and outstanding capability off-road.

Key Features:

• Carli custom tuned King 2.5" remote reservoir shocks

• 55% more piston surface area compared to 2.0" shocks

• Carli-designed pistons for optimized damping performance

• 17-4 stainless steel shock shafts for maximum durability

• Designed for approximately 3.25" lift applications

• Improves ride quality, stability, and off-road capability

• Includes front and rear shocks with coil-mounted short reservoir brackets

• King shock oil rated to -55°F for extreme conditions

Notes:

• Designed specifically for trucks with factory auto-leveling air suspension

• Compatible ONLY with Carli 3" front springs and Carli rear lift springs for air ride systems

• Shock bodies are plated steel; protective coating recommended in harsh climates

• Professional installation is recommended

Vehicle Fitment:

• 2016–2023 Ram 3500

SKU: CS-DPT25SPKG-13-D-ALAS
