Carli Coilover Bypass 2.5 System - 2.5/3.5in Lift - 2011-16 Ford F250/F350 - Diesel

Carli Suspension

Coilover Bypass 2.5 System - 2.5/3.5in Lift - 2011-16 Ford F250/F350 Diesel

The Carli Coilover Bypass System is one of the most capable off-road suspension systems available for the 2011–2016 Super Duty platform. Designed to deliver exceptional performance both on-road and off-road, this system combines premium ride quality with extreme terrain capability through advanced shock technology and precision tuning.

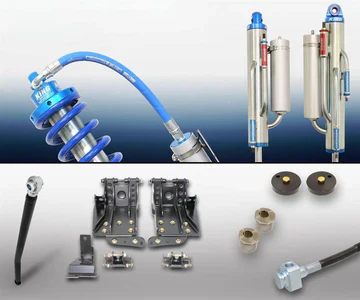

At the core of this system are Carli-spec King 2.5" coilovers and multi-tube bypass shocks, offering unmatched control, tunability, and bottom-out resistance. With multiple adjustable zones for compression and rebound, the bypass shocks allow you to fine-tune ride quality and performance to match your driving style and terrain.

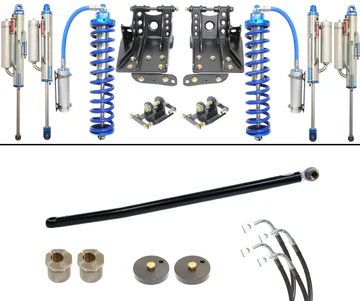

Key Features:

• Provides approximately 2.5" of front lift (up to 3.5" depending on configuration)

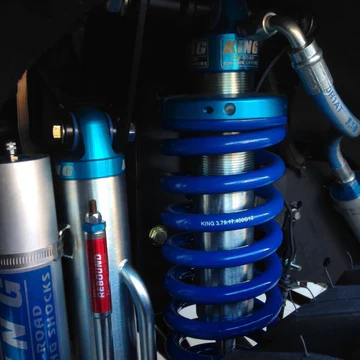

• Carli-SPEC King 2.5" front coilovers with custom tuning

• 8" stroke front 2-tube bypass shocks for enhanced front suspension control

• 12" stroke rear 3-tube bypass shocks with oversized rebound tube

• Fully adjustable bypass shock tubes for compression and rebound tuning

• Custom Carli-designed pistons for optimized damping performance

• 17-4 stainless steel shock shafts for maximum durability and corrosion resistance

• King shock oil rated to -55°F for extreme conditions

• Adjustable track bar, caster shims, and stainless brake lines included

• Increased wheel travel and improved off-road capability

Notes:

• Bypass shocks feature external tubes and may produce audible clicking during operation

• System is fully adjustable for ride comfort or maximum off-road performance

• Full Progressive Leaf Spring Pack reduces load capacity by approximately 15% compared to stock F-250

• Off-road focused system; additional upgrades such as radius arms, steering stabilizer, and differential protection are recommended

• Roll cage is recommended for extreme off-road use

• Shocks use plated steel bodies; protective wrapping is recommended in harsh environments

Wheel and Tire Recommendations:

• 17"–18" wheels, no wider than 9"

• Approximately 5" backspacing with Carli radius arms

• 35" tires fit with minimal trimming; 37" tires may require trimming

• Larger tires improve ride compliance when properly inflated

Vehicle Fitment:

• 2011–2016 Ford F-250 Super Duty

• 2011–2016 Ford F-350 Super Duty

SKU: CS-FLVL-CO25-BYP-11
