Carli 23+ Ford F250/350 4X4 Fabricated Radius Arms - 5.5in Lift

Carli Suspension

Carli Fabricated Radius Arms - 2023–2026 Ford F250/F350 4x4 - 5.5" Lift

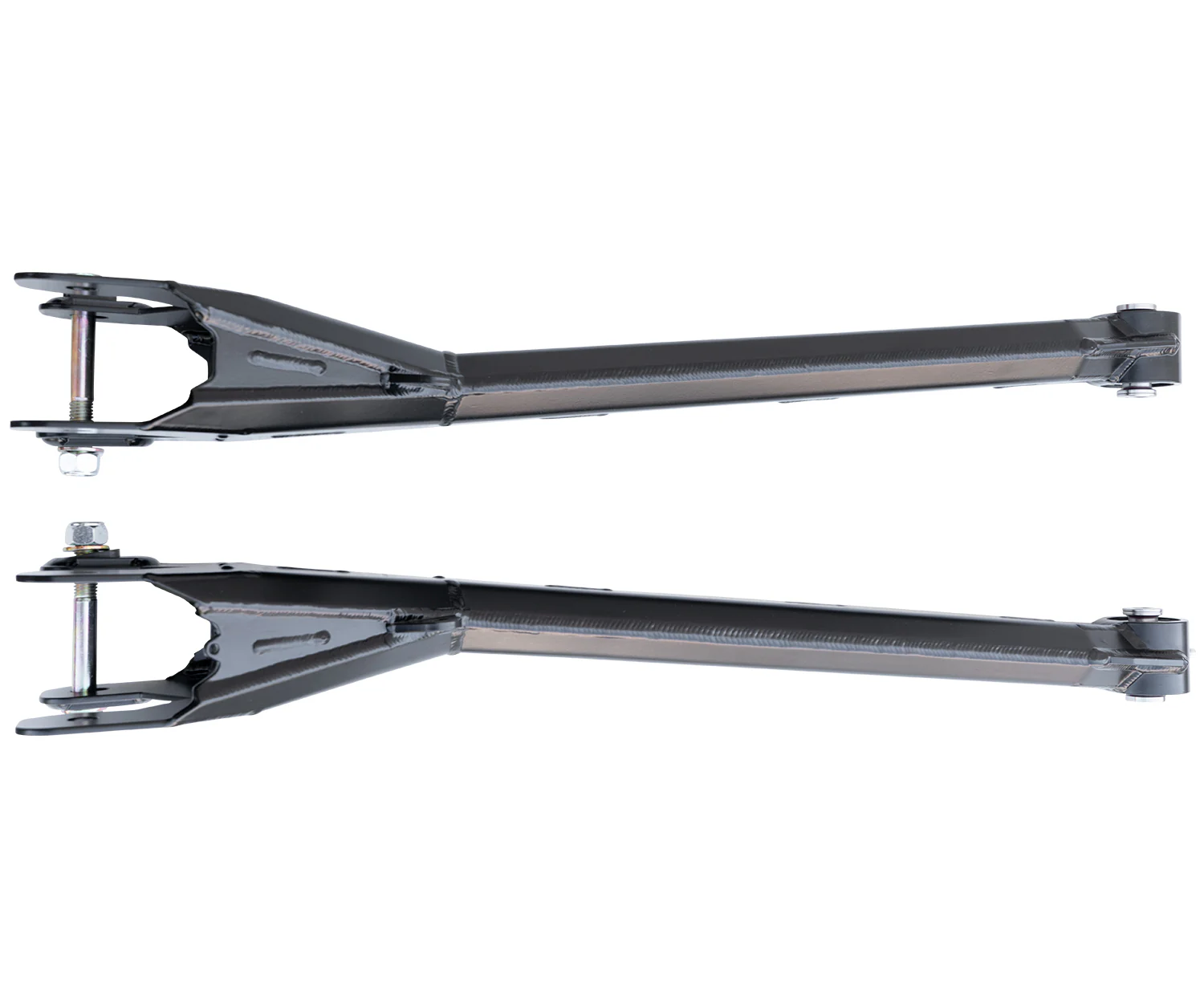

The Carli Fabricated Radius Arms are engineered to maximize strength, stability, and suspension performance on 2023+ Super Duty trucks running 5.5" lift systems. Featuring a fully redesigned structure, these arms provide precise caster correction while eliminating bind for smooth suspension cycling.

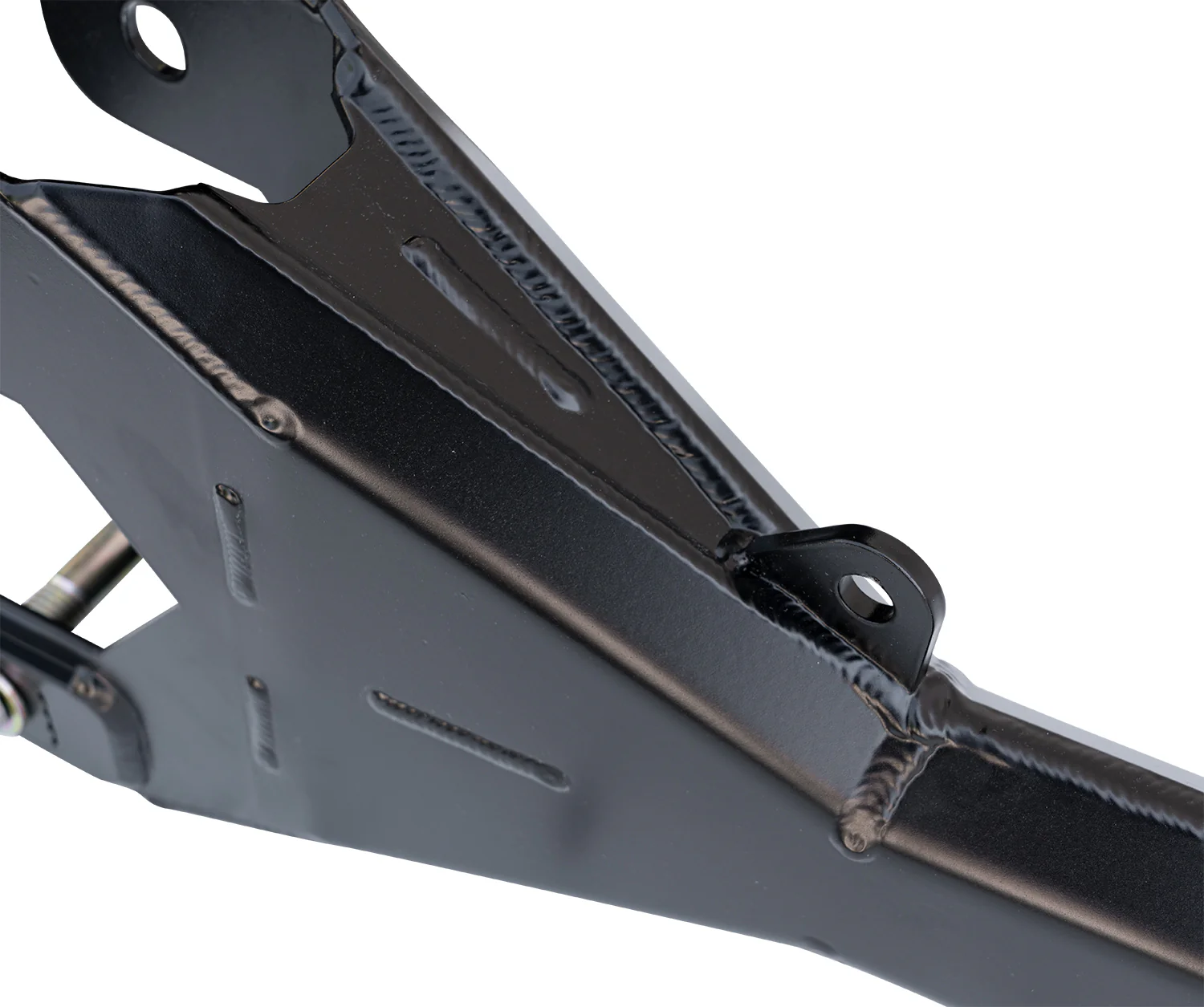

Constructed with fully boxed 3/16" steel and full-length internal gusseting, these arms are built for extreme durability. The 17-4 stainless spherical joint ensures long-lasting, bind-free articulation, while adjustable caster from 0.5° to 2.5° allows for proper alignment and improved drivability.

Key Features:

• Adjustable caster correction from 0.5° to 2.5°

• Fully boxed 3/16" steel construction with internal gusseting

• 17-4 stainless steel spherical joint for bind-free cycling

• Includes 15" limit strap kit

• Redesigned for 2023+ Super Duty platform

• Supports 37" tire fitment with proper backspacing

Notes:

• Designed specifically for 5.5" Carli lift systems

• Improves handling and helps prevent death wobble

• Offset design accommodates updated 2023+ frame geometry

Vehicle Fitment:

• 2023–2026 Ford F-250 Super Duty

• 2023–2026 Ford F-350 Super Duty

SKU: CS-FARA-55-23
