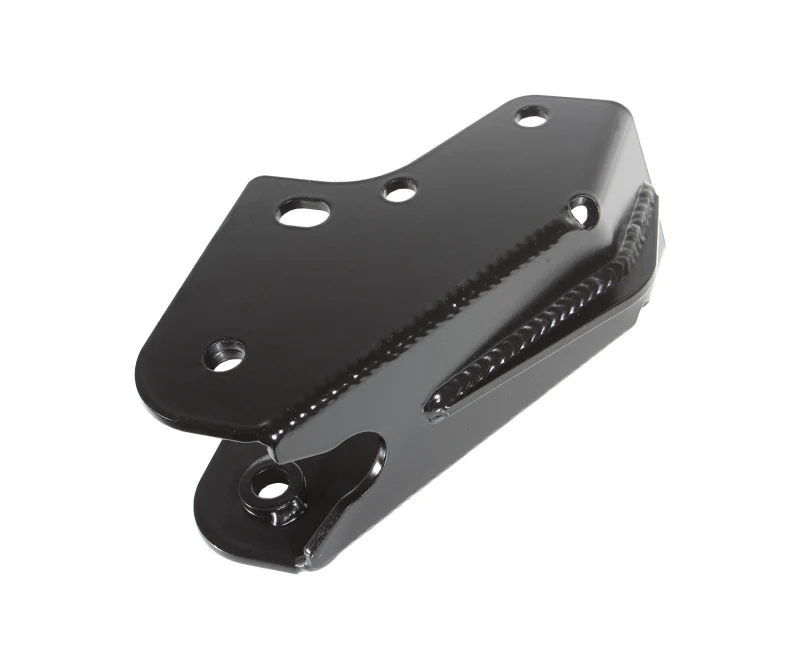

Carli 2014–2023 Ram 2500 Rear Track Bar Drop Bracket

The Carli Rear Track Bar Drop Bracket is designed to recenter the rear axle after installing a 1 to 2-inch rear lift on a Ram 2500. Lifting the rear of the truck puts the factory rear track bar at a steep angle, which can create unwanted body yaw as the front and rear track bars swing in opposite directions.

Built from 3/16-inch cold-rolled steel, this bracket bolts onto the factory mount and includes new hardware for installation. By relocating the rear track bar back within factory geometry, it helps reduce exaggerated body shift and improves overall stability on lifted trucks.

Key Features:

• Designed for Ram 2500 trucks with a 1 to 2-inch rear lift

• Helps recenter the rear axle after lifting

• Drops below the factory pivot point to minimize rear yaw

• Returns lifted trucks closer to factory rear track bar geometry

• Helps eliminate exaggerated body shift

• Constructed from 3/16-inch cold-rolled steel

• CNC-bent and fixture-welded for precise fitment

• Bolts onto the factory mount

• Includes new hardware

Vehicle Fitment:

• 2014–2023 Ram 2500

  • Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Outdoorsman, Power Wagon, Rebel, SLT, Tradesman

SKU: CS-DPRBDROP-14-R
