Carli 10-13 Dodge Ram 2500 10-12 Ram 3500 4x4 Billet High Clearance Extended Control Arms

Carli Suspension

Carli Billet High Clearance Extended Control Arms

The Carli Billet High Clearance Extended Control Arms are designed for 2010–2013 Ram 2500 and 2010–2012 Ram 3500 4x4 trucks running 3 inch suspension systems. When the front end of a straight axle Ram is lifted, the axle shifts toward the driver side and rearward. These extended control arms help recenter the axle in its new travel range while providing added tire clearance, strength, and improved suspension movement.

Machined in-house from solid 6061 billet aluminum, these arms offer a clean, high-clearance design with robust construction. Carli’s serviceable spherical bearing joint design allows increased lateral misalignment compared to standard hat-bushing style arms, helping the suspension articulate more freely while reducing bind caused by axle movement.

Key Features:

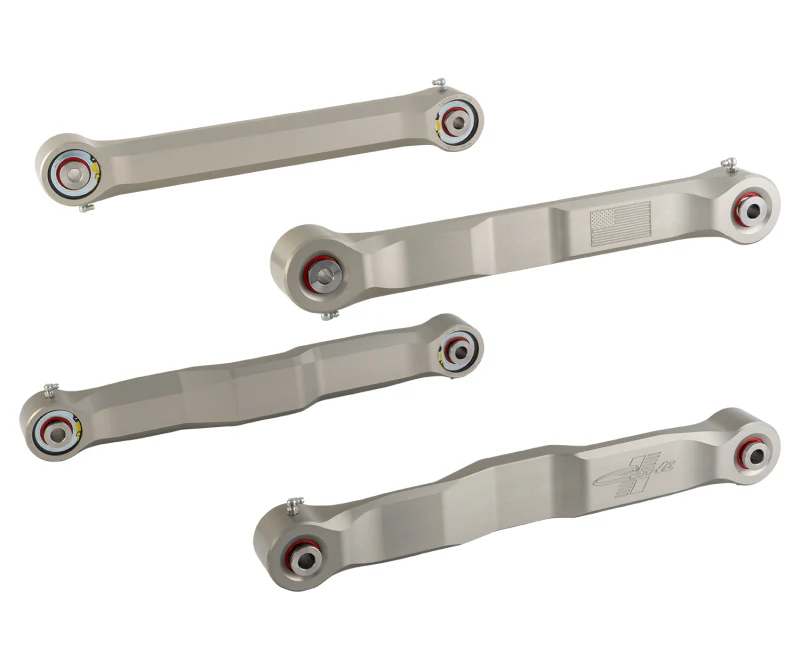

• Includes 4 control arms: 2 upper and 2 lower

• Re-centers the front axle on 3 inch suspension systems

• Helps shift the axle forward to its corrected travel position

• Provides increased tire clearance

• Machined in-house from solid 6061 billet aluminum

• Clear anodized finish

• Serviceable spherical bearing joint design

• 17-4 stainless ball centers for strength and corrosion resistance

• Proprietary bushings and joint washers

• Grease channels promote easier servicing and grease migration

• Zerk fittings allow joint lubrication

• Designed to reduce bind during suspension articulation

• Supports 37 inch tire fitment with proper wheel specs

Notes:

• Designed for 3 inch suspension systems.

• For 37 inch tire fitment, Carli recommends a wheel no wider than 9 inches with 5.75 inches of backspacing.

• An adjustable track bar is also recommended to shift the axle back toward the passenger side after lifting.

Vehicle Fitment:

• 2010 Dodge Ram 2500 4x4

• 2010 Dodge Ram 3500 4x4

• 2011–2013 Ram 2500 4x4

• 2011–2012 Ram 3500 4x4

SKU: CS-DBCA-10-CLR
