Carli 03-13 Dodge Ram 2500/3500 Extreme-Duty Ball Joint Package 4WD

Carli Suspension

Carli Extreme-Duty Ball Joint Package

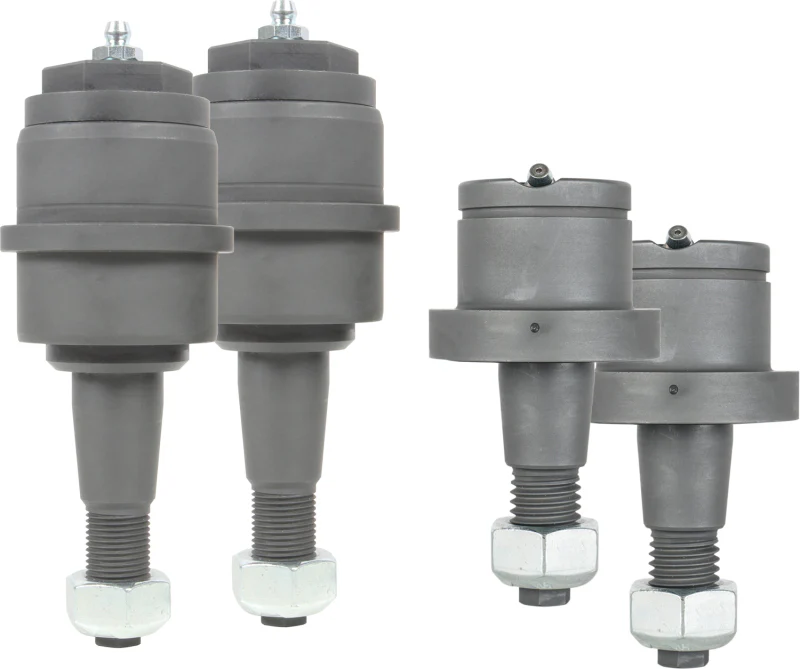

The Carli Extreme-Duty Ball Joint Package is designed to upgrade the front end of 2003–2013 Ram 2500 4x4 and 2003–2012 Ram 3500 4x4 trucks with stronger, serviceable ball joints built for demanding use. This package includes two upper ball joints and two lower ball joints engineered to improve durability, reduce common factory failure points, and maintain precise steering and suspension movement.

The upper ball joints use a floating king-pin style design that adds a second wear surface to better distribute lateral load while retaining a factory-style failsafe to keep the pin from pulling through the housing. The lower ball joints use a liner-free design with a bronze wear surface, disc spring preload, safety washer, and snap ring to keep the wear surfaces tightly controlled for long-term performance.

Key Features:

• Includes 2 upper ball joints and 2 lower ball joints

• Extreme-duty upgrade for Ram 2500/3500 4WD trucks

• Upper ball joints use a floating king-pin style design

• Upper pin hat contacts the housing to create a second wear surface

• Helps distribute lateral load more effectively than the factory design

• No sleeve isolating the wear surfaces, reducing a common failure point

• Larger upper grease cavity with serviceable zerk fitting

• Viton seal helps prevent contaminants from entering the ball joint

• Lower joints use a liner-free design

• Bronze wear surface with disc spring preload

• Safety washer and snap ring help maintain proper internal preload

• Grease channels help move lubrication to the wear surfaces

• Carburized and heat-treated wear surfaces for increased hardness

• Corrosion-resistant gray coating helps protect against the elements

• Includes tube of CV2 grease

• Includes lower ball joint tool

• Lifetime warranty

Notes:

• Ball joints are built with carburized wear surfaces featuring a case-hardness depth of approximately 20 to 25 thousandths.

• Warranty registration is required for lifetime warranty coverage.

• Designed for 4WD applications.

Vehicle Fitment:

• 2003–2013 Dodge Ram 2500 4x4

• 2003–2012 Dodge Ram 3500 4x4

SKU: CS-DBJP-03
